How To Mine Ethereum + PascalCoin With Claymore’s Dual Miner – ETH 175Mh/s – PASC 875Mh/s

Ledger Wallet protects your bitcoins

With the latest release of Claymore’s Dual Miner v8.0, besides the improvements and adjustments, there also was a new feature added which is Ethereum + PascalCoin mining. If you missed my article about the update you can check it here.

Here is the official thread of Claymore’s Dual Ethereum AMD+NVIDIA GPU Miner v8.0 (Windows/Linux) where you can read more about it:

For this tutorial i am using the following configuration:

MoBo – $200 ASRock H97 Anniversary or $160 ASRock H81 PRO BTC

RAM – $65 HyperX 8GB

CPU – $75 Intel G3258 4 Pentium 3.20

SSD – $55 Kingston 120GB SSDNow

Risers – $50 6-Pack PCI-E 16x to 1x Powered Riser

PSU – $235 EVGA 1200W 80 Plus Platinum

6x GPUs- $1,200 Sapphire Nitro+ RX 470 4GB

Frame – $190 GPU Mining Rig Open Air Frame Case or do it yourself, tutorial here!


Ethereum & Ethereum Classic hashing speed using 6x Sapphire Nitro+ RX 470 4GB can be up to 170Mh/s.

UPDATE FEBRUARY 23, 2017 for 1x Sapphire Nitro+ OC RX 470 4GB (Samsung Memory) : stock 22.xx Mh/s, modded bios 24.5xx Mh/s, overclocked and downvolted 70w-80w Mh/s. 6x rig 175 Mh/s

Here is how you can mine Ethereum and Pascal at the same time with Claymore’s Dual Mininer:

To receive the latest updates follow me on social media! 🙂

Create PascalCoin Wallet Key
  • First of all, create an account with
  • When logged in, go to “BALANCES” -> “DEPOSITS & WITHDRAWALS
  • In the search form type “pasc” and it will instantly show you PascalCoin, then click on “deposit” and the wallet key will be generated, save it for later.
  • The click on Deposit Address to generate one, save it for later
Preparing Mining Pools
  • As always for Ethereum i will be using (no account registration is required)
  • For PascalCoin i will use, create an account with suprnova if you don’t have one yet/
  • Once logged in, go to “Edit Account” and fill it up with your details, also don’t forget to add the wallet key there and to set

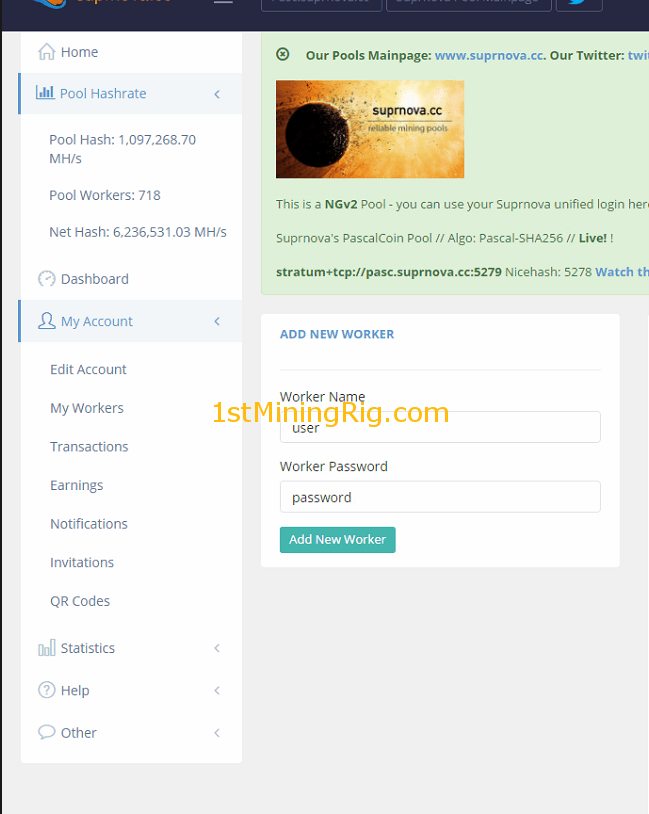

  • Then go to “My Account” -> “My Workers” and create one
Claymore Miner Configuration
  • Download Claymore’s Miner v8.0!O4YA2JgD!n2b4iSHQDruEsYUvTQP5_w
  • Once downloaded, extract the files from archive
  • Right click on “start.bat” file and then click “Edit

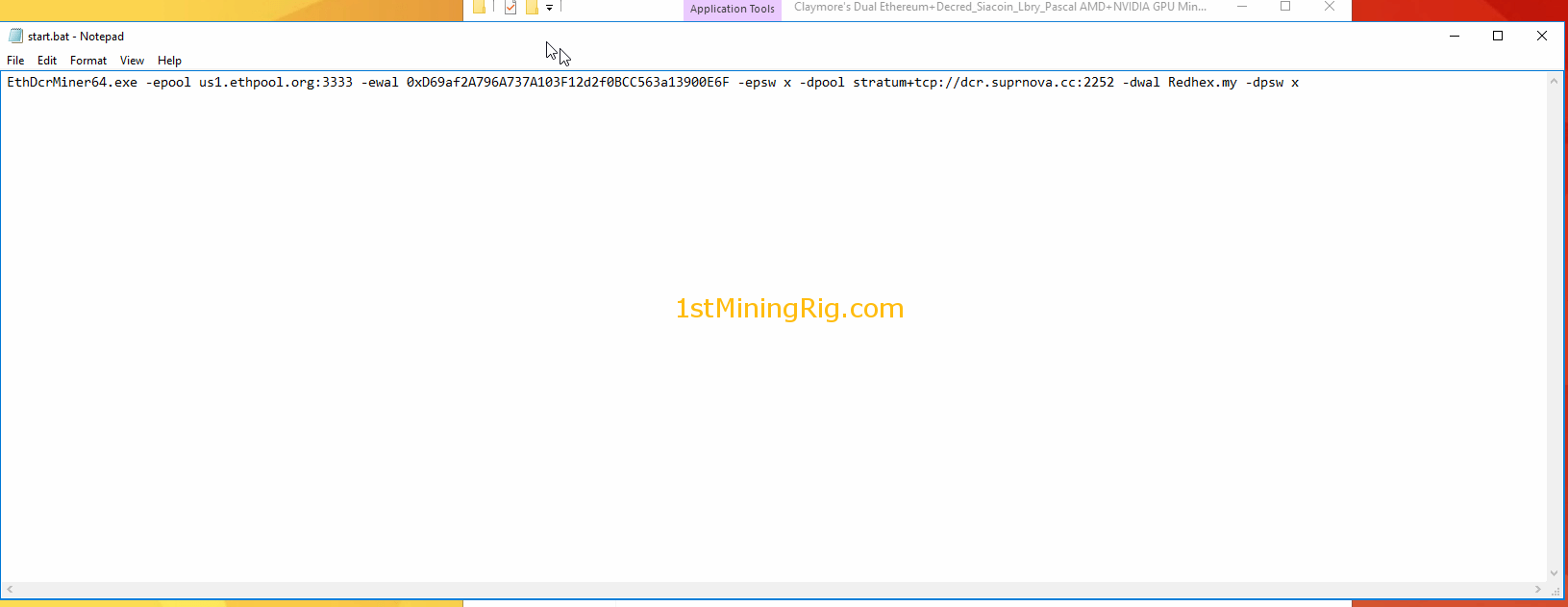

  • Replace everything with the following code: EthDcrMiner64.exe -epool -ewal WALLET_KEY.RIG_NAME -epsw x -dpool stratum+tcp:// -dwal SUPRNOVA_USERNAME.SUPRNOVA_WORKER_NAME -dpsw SUPRNOVA_PASSWORD -dcoin pasc -dcri 10
  • Replace wallet key, rig name, username and password with yours
  • Save as” .bat file and give it a name like ETH+PASC.bat
  • Run the .bat file and the miner process with start.

That’s it, you are now mining Ethereum and Pascal at the same time with Claymore’s Dual Miner

Hashing results with 3x Sapphire Nitro+ OC RX 470 4GB mining rig

Stock settings (modded bios +2 Mh/s per card):

Before to continue further, please share this 🙂 thanks!

More hashing power, OVERCLOCK & UNDERVOLT!


Ethereum: 175Mh/s @800w

Pascalcoin: 875Mh/s @160w

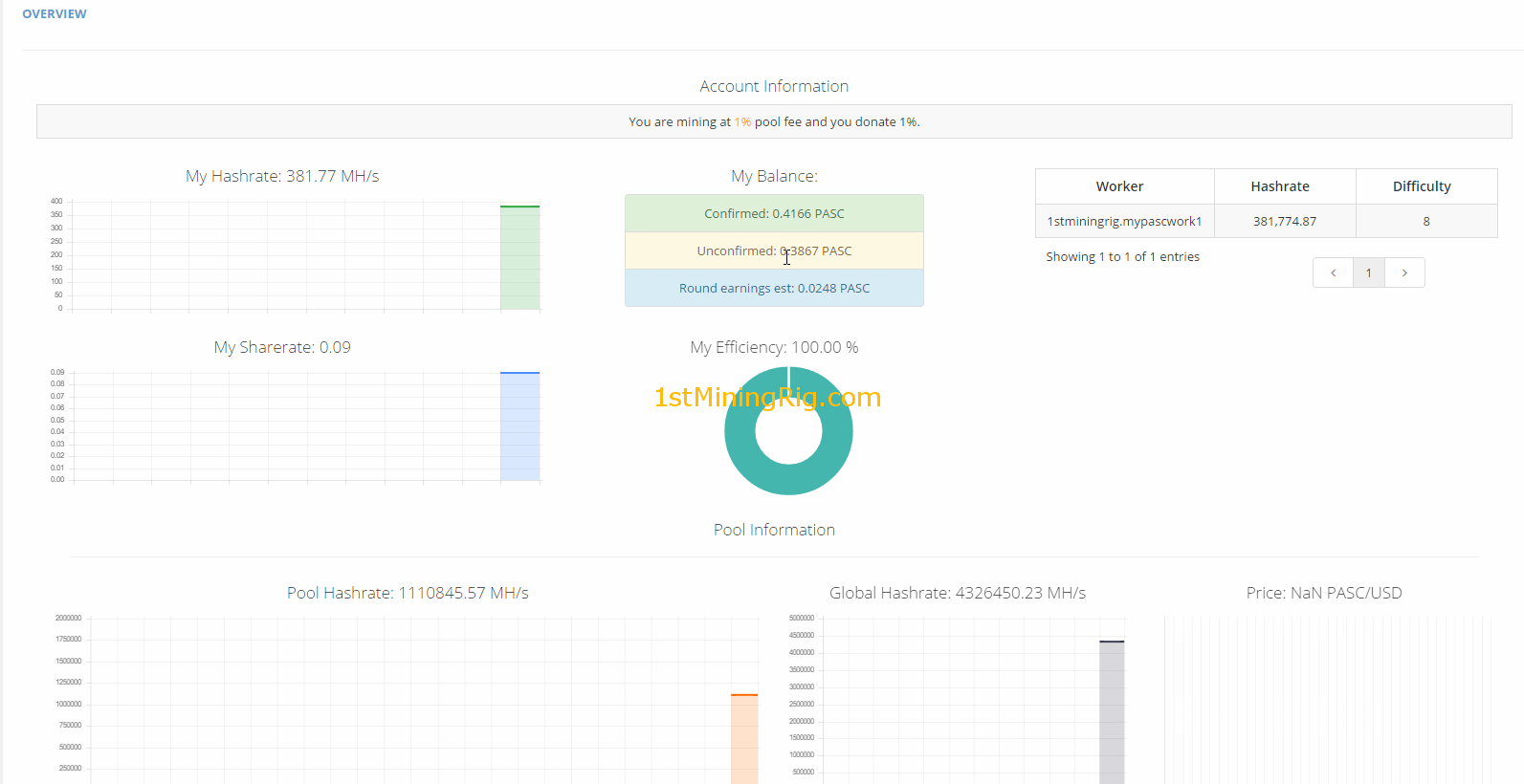

Checking mining progress

Claymore did it again 🙂

Have Fun!

Thank you for reading. As always, your comments, suggestions and questions are welcome.

Subscribe and stay tuned for further updates!

Found this useful? Buy me a beer 🙂

ETH: 0x8a159cc27454130ee4880504f4d2afe2ebb22d15

BTC: 3DWC5xaaapSRmccAvv12dF3nsRYqx3Y1YM

ZEC: t1T9dLLM14Jh6NNuCPfNsRgGnj58LkT3yYX

  • Arthur

    Hey, i don’t understand “Once logged in, go to “Edit Account” and fill it up with your details, also don’t forget to add the wallet key there and to set”

    When i put my key of poloniex : Failed to update your account: Invalid coin address



  • kindergart

    Can you tell me the Core clock and Memory clock values?

    I am getting 26MH for RX480 on
    Core clock = 1100
    Memory Clock = 2200
    ETH mode only.
    What are your values for dual?

  • Hi, send me the ROM pelase!


      i already send email to you
      let check it

  • dronnick

    I get only 13.9 Mh/s ETH speed on R9 280x. Is this a speed to expect on this GPU?

    • i think you should get a bit more than that, have you increased/decreased dcri ?

      • dronnick

        Yes, i tried to change dcri a little. But got only 14.05. How far can i change dcri?

        It seems to be, this is OK speed for an R9 280X now. Last year it was 20, but now something seems to be changed.

  • Darren Yu


    what is the SUPRNOVA_PASSWORD? is it the worker password or password to the suepernova account?

    • Yes, is the worker password 🙂

      • Darren Yu

        thank u for ur fast response. also how long should it take for me to receive something in myetherwallet? ive been mining for about 2 hours now and still nothing. also how come the PASC at supernova doesnt show any MH for the Global hash?

        • I think they disabled their pool for pascal, you should use nanopool instead!

  • Adon


    Can I use Claymore to solo mine ETH and pool mine PASC at the same time

  • Dan

    site closed down, use this site instead ?

    • pasl is for pascal lite, try nanopool for pascal.

  • Dan

    What do I put for rig_name? from this command -ewal WALLET_KEY.RIG_NAME ??
    Can you just put ETH wallet address?

  • Mark

    sorry for what might be a dull noob question but have tried to find the answer and failing…
    the readme says to install catalyst (crimson?) 15.2 but this is very old now. i can find it but to install it requires fglrx dependencies that are obsolete and can’t be found. could anyone help me understand if i need 15.2 (most recent for rx580 is 17.x) and how to install such an old driver? very grateful indeed.

    • No, that is for something else, for 500s use latest drivers 🙂

      • Mark


  • Christian Ulirsch

    I seem to be having issues with my drivers. For a 7 GPU rig with ASUS Rx480 8 Gb cards, what version of claymore and drivers should I try. I have used claymore v9.3 and drivers 16.6.2, 16.9.1 and 16.9.2

  • Vinícius Alves

    Can you mine DGB with this?

  • Kyonkanno

    Is this more profitable than mining a single coin at a time? I’d guess that dual mining would split your Hashrates between the different coins, right? Please forgive my ignorance.

    For example if I hash at 30 Mh/s only on ethereum, If I used this dual mining would my hashrate fall?

    • Hi, the hashrate will not split, you will have the same hashrate for ethereum or better.

  • Kyonkanno

    Hey, suprnova isn’t accepting new users. When my miner tries to connect, it fails. So I’m using nanopool instead. However I can’t see my worker on the nanopool page, When I type in my address it can’t find it. How long should I wait?

    • Usually 10-15 minutes.

    • disqus_Iz41ErkoTh

      Use Coinotron for Pascal.

  • Daniel Slabodar

    Hi, how to mine etheteum with nanopool and pascal solo with claymore? I’m missing command line option to mine solo with claymore miner
